Disinfection of used water in an open channel, automatic cleaning system, advanced PLC and SCADA communication

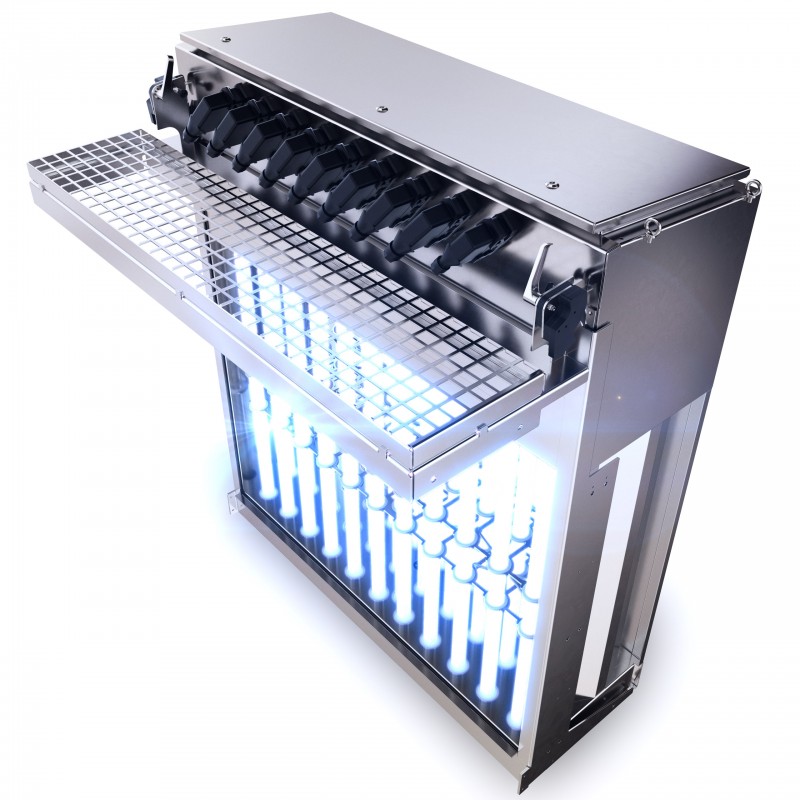

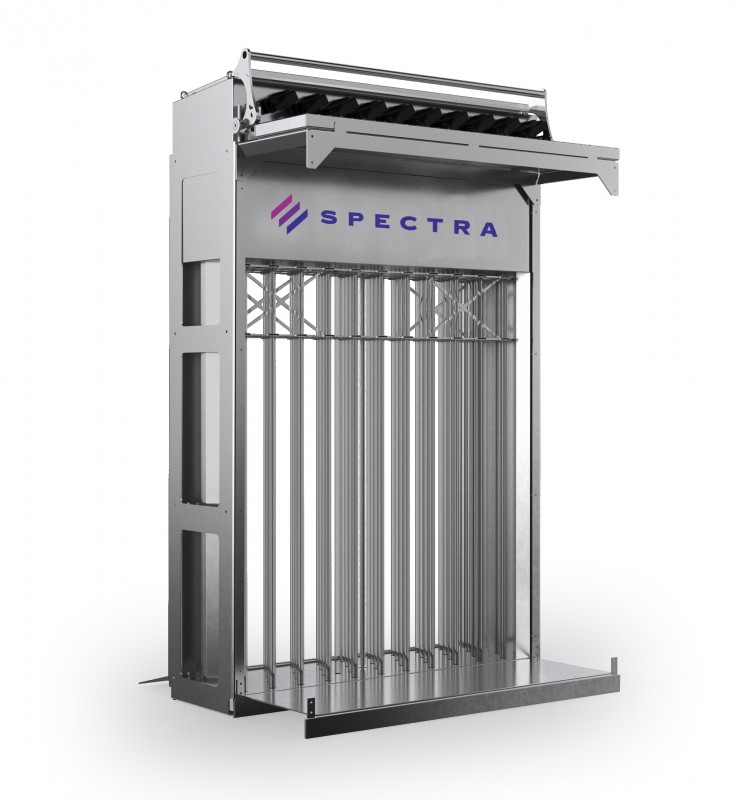

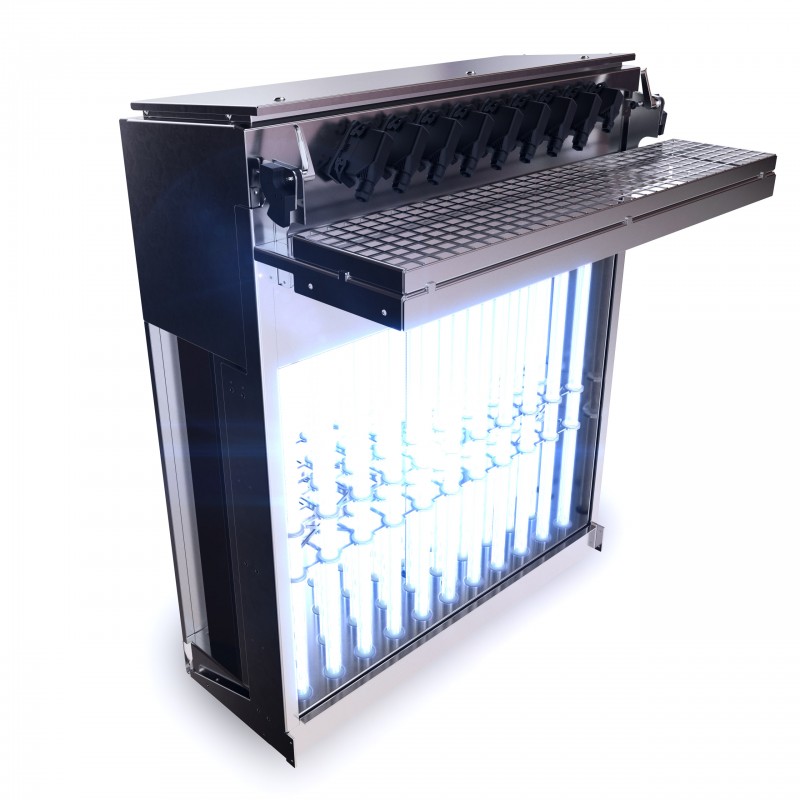

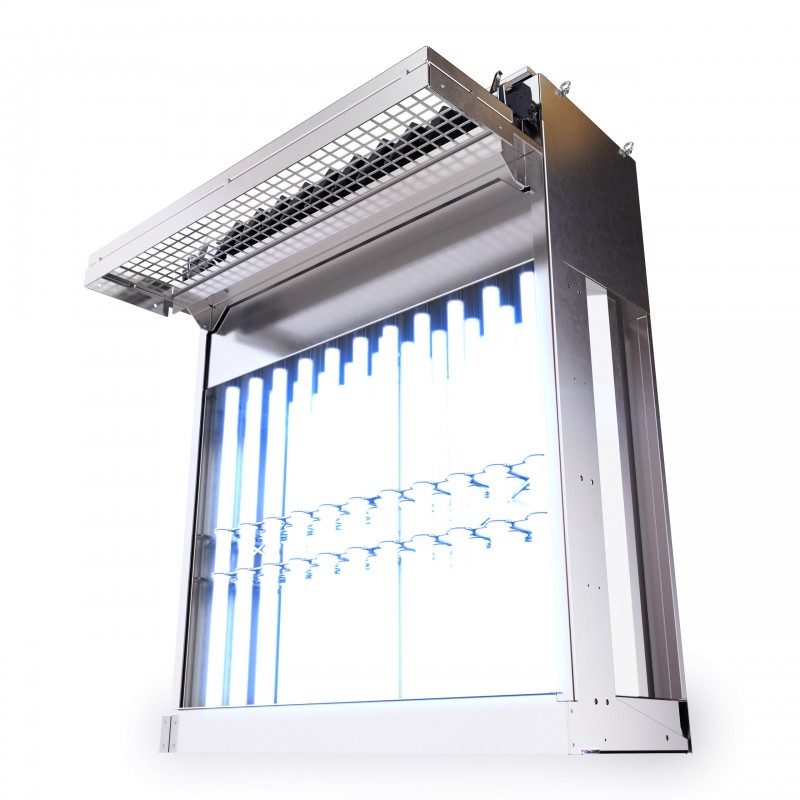

MR Series has a modular design, can be made of polypropylene or AISI 316l stainless steel, is equipped with a UV sensor for monitoring the UV intensity and comes with a control panel. For the disinfection of wastewater in a single module can be 16, 20, 24, 28, 32, 36, 40, or 44 lamps
Includes automatic quartz sheath cleaning system and advanced PLC for dose pacing and SCADA communication.
Eliminates up to 99.99% of viruses, bacteria and algae.
Minimum water level - 1200mm
Maximum level - 1400 / 1500mm
ADVANTAGES:
World’s only flood protected wastewater UV disinfection system,
Guaranteed 16 000-hour lamp lifetime,

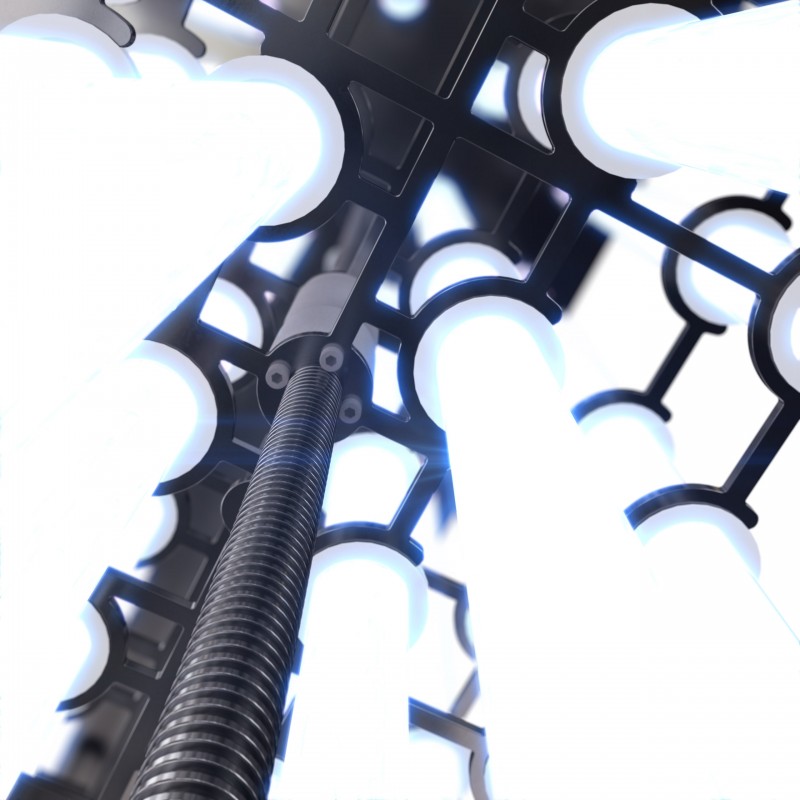

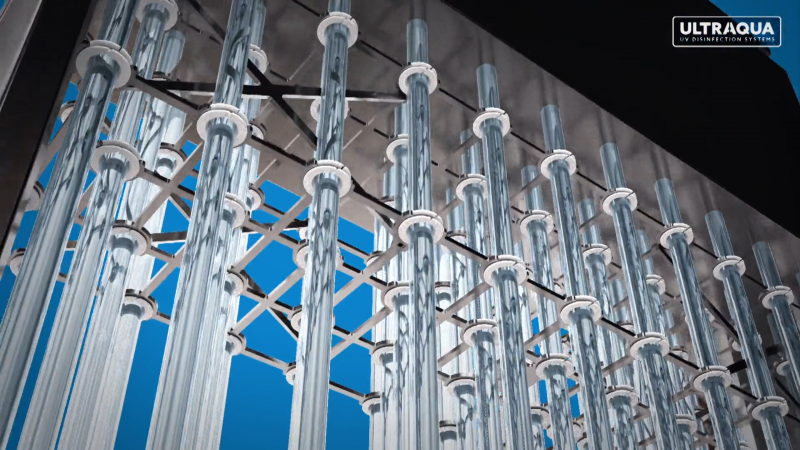

Automated quartz sleeve wiping system,
High level of design versatility – retrofitting in various channels depths’ and widths,
Available for wall mount installation,

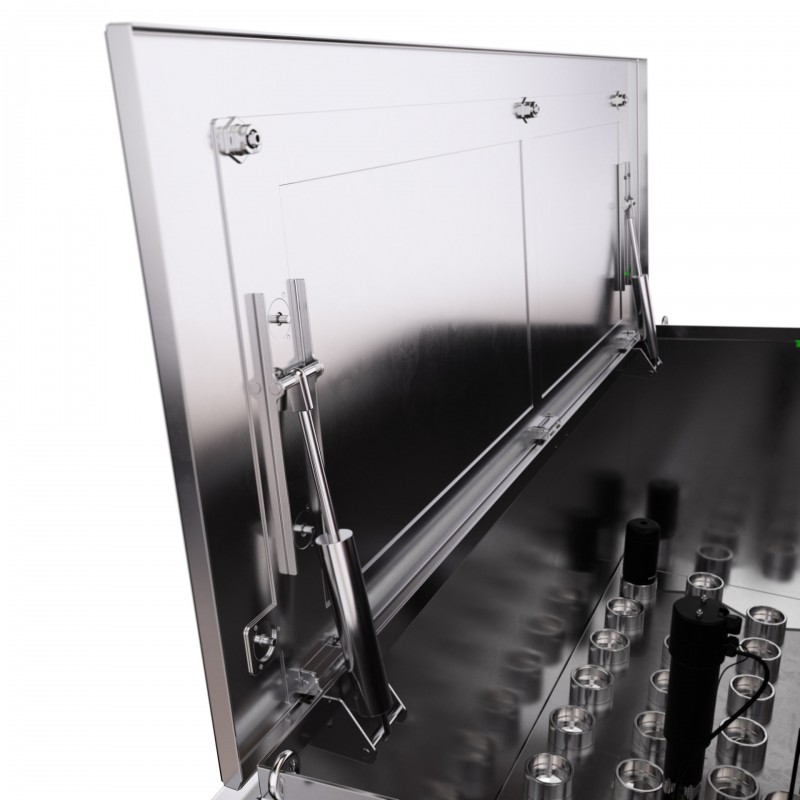

Hygienic isolated top compartment for maintenance allows for easy access to all UV lamps without the need to lift the lamp bank out of water,
Optional environment control equipment – water level sensors, weir gates and penstocks.
BENEFITS:
Unrestricted discharge into the emissary,
Easy maintenance and maintenance,
Low costs for water treatment,
No corrosion or formation of by-products (DBP),
The automated cleaning system allows operation in optimal parameters without intervening from the outside to clean it.
