Spektron LBX UV sterilizer for disinfection of waste water or fluids with low UVT, manufacturer Wedeco (Xylem)

UV system for disinfection of wastewater or fluids with low UVT, wide range of flow rates (from 2.6 mᶟ/h to 1346 mᶟ/h) and extensive options

LBX systems have been extensively tested to meet the U.S. Environmental Protection Agency’s UV Disinfection Guidance Manual (USEPA’s UVDGM 2006) and the National Water Research Institute (NWRI) guidelines, including the most stringent California Title-22 Water Reuse standards. The extensive validation envelope allows for proven disinfection performance over a wide range of UV transmittance (UVT) and a variety of target organisms including Adenovirus. Highest efficiency and adaptability for various municipal and industrial treatment schemes. For improved economy and maximum sustainability LBX units employ WEDECO’s low-pressure, highoutput (LoHi) amalgam ECORAY® UV lamps. With numerous sizes for a wide range of flow rates and extensive options including alternative flange connectors and reactor shapes, cabinet types, various control modes, chemical free wiping system, and SCADA communications, the LBX Series is easily customizable to match specific site requirements.

Advantages

• 2,100 m³/h maximum flow rate
• Validated performance by state-of-the-art bioassay in compliance with USEPA’s UVDGM (2006), IUVA Protocol (2011) and NWRI Guidelines (2003/2012)
  (LBX 90e, 400e, 850e, 1000e and LBX 1500e)
• High efficiency Ecoray UV lamp and ballast technology (LBX 90e-1500e)
• Long guaranteed lamp life (up to 14,000 h) and excellent temperature stability of Ecoray UV lamps
• OptiDose Control - Xylem's Wedeco true intensity based control philosophy using an ÖNORM-certified UV intensity sensor  (option for LBX 90e-1500e)
• EcoTouch or PLC controlled - operator-friendly UV system controller with SCADA communication

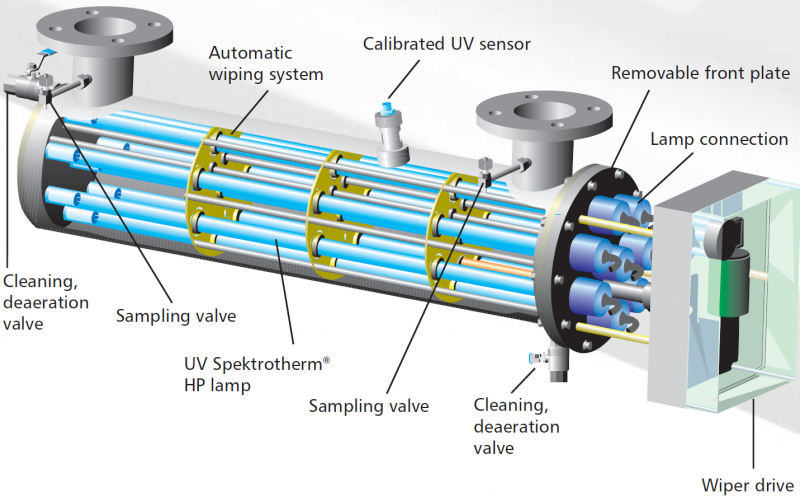

• Reduced maintenance effort by the use of a chemical-free, automatic, mechanical wiping system
• Variable installation positions for easy integration into existing pipe work
• OptiCone flow diverter (LBX 850e, LBX 1500e)
• No harmful by-products (such as THM’s in chlorinating)
